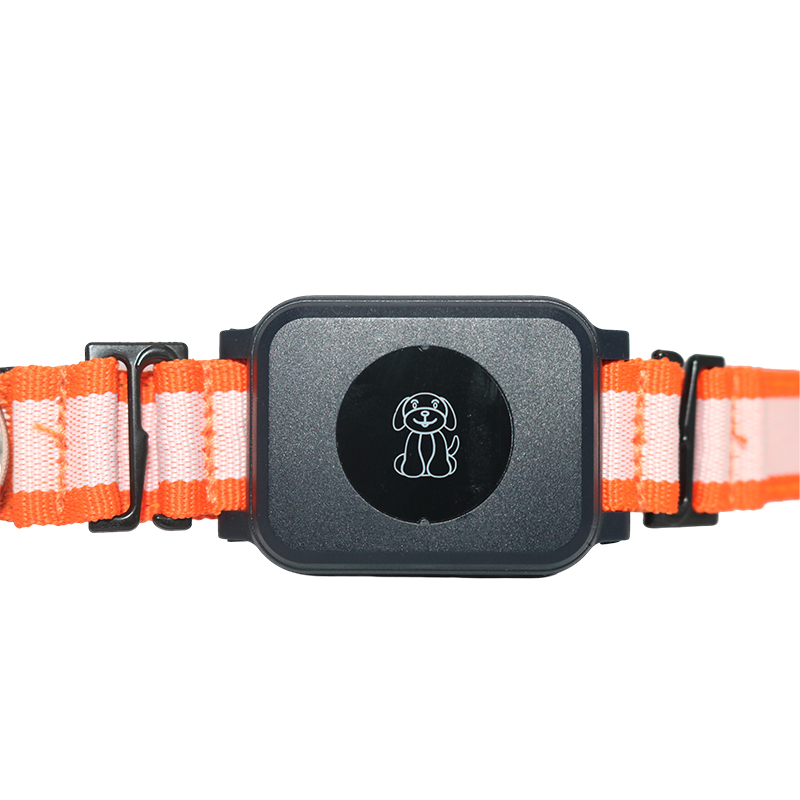

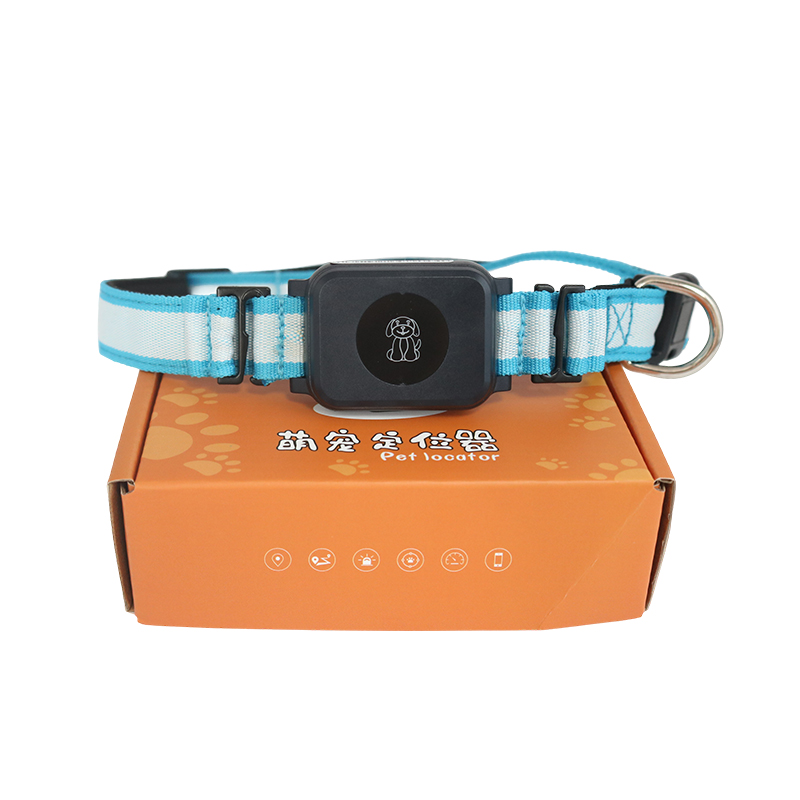

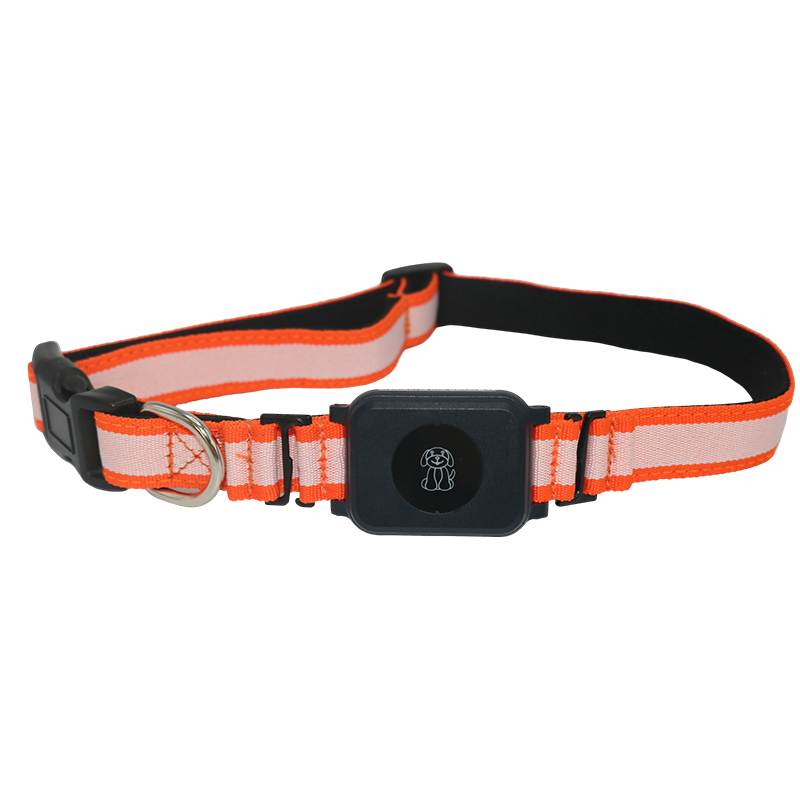

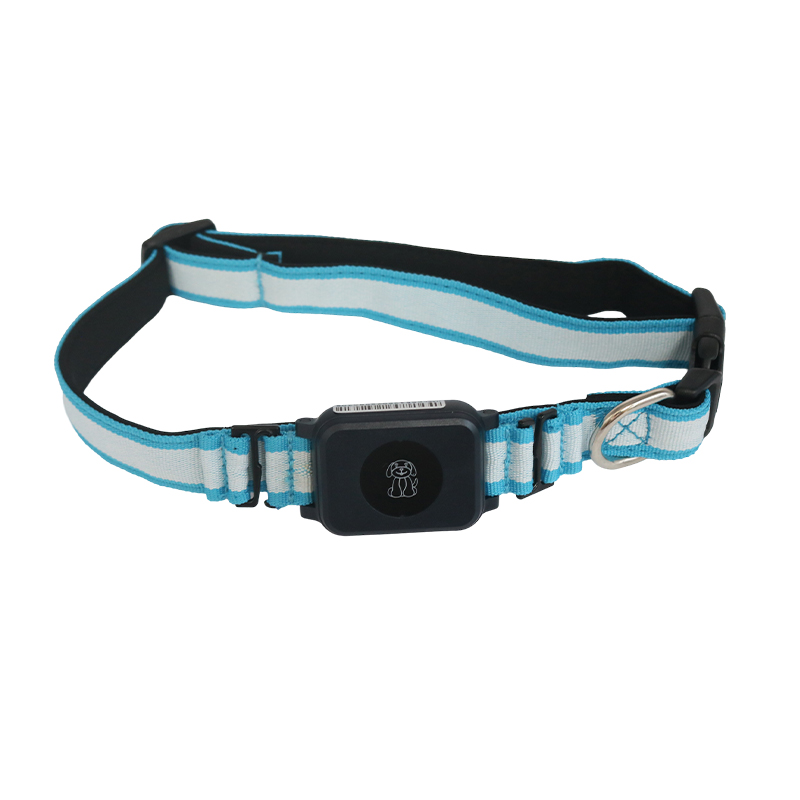

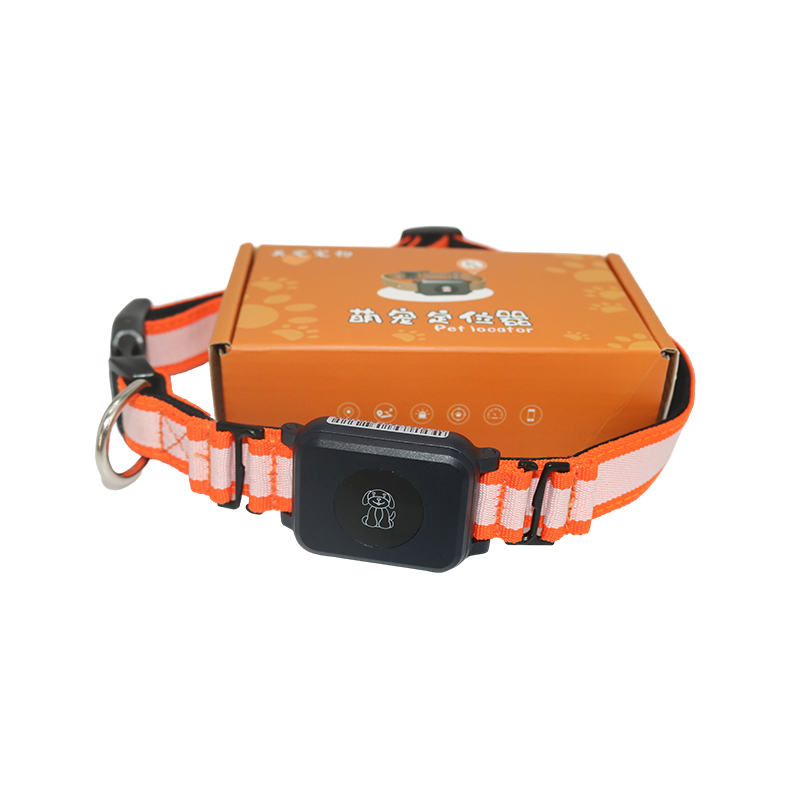

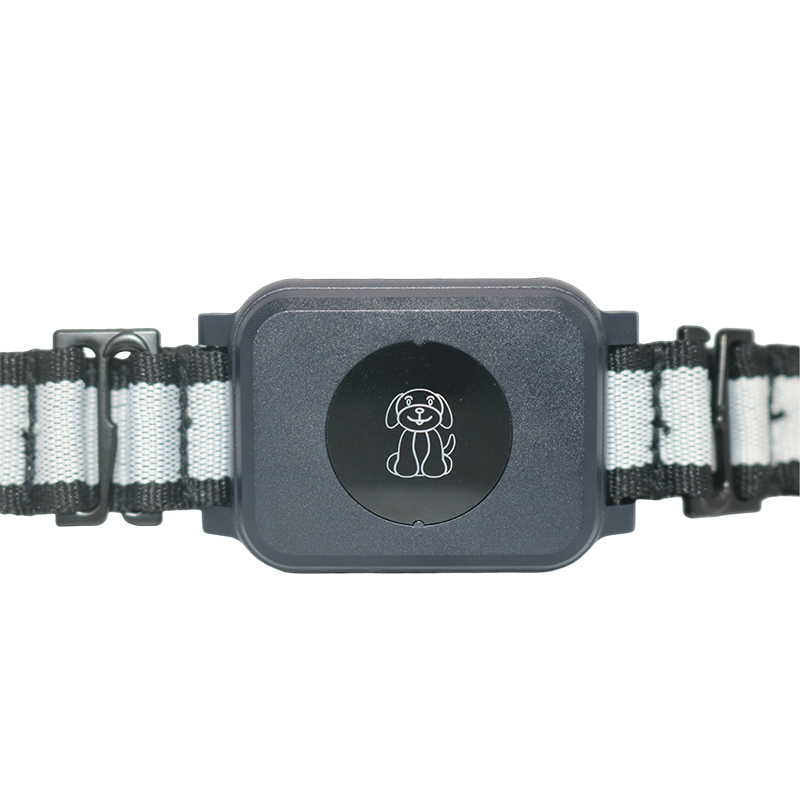

Pet Locator, Tracking Cats And Dogs, Long Battery Life, Real-Time Positioning, GPS Satellite, Cat And Dog Search, Anti-Lost

Product parameters

Describe

Hardware platform

GX316+UC6228(GPS+BD)

Dimensions

Dimensions: 40(L)*35(W)*16(H)mm, battery 7.5+board 5.5+shell 1.5X2 = 16

CAT1

FDD-LTE:B1,B3,B5,B8
TDD-LTE:B34,B38,B39,B40,B41

GPRS

Class12.TCP/IP  build in GSM Module

Number of channels

20

Acquisition sensitivity

-144dBm

Tracking sensitivity

-160dBm

Battery capacity

Lithium battery 500ma

Positioning time

Hot start <2SEC (Open Sky)

Warm start <15SEC

Cold start <38SEC (Open Sky)

GSM antenna

FPC antenna

GPS antenna

FPC antenna

Power switch (side)

Support

MIC

Reserved support

SOS button (front)

Support

Vibration sensor

Support

Light sensor

Reserved support

Temperature sensor

Reserved support

Microphone

Support

Power status indicator

Support

GPS status indicator

Blue

GSM/power status indicator (side)

Red (always on when charging)

Battery installation

Welding method

Detachment alarm (light sensor)

Support

Working time

Standby 7-10 days

Charging

Magnetic charging (supports charging with no light indication, automatic charging reset system)

WIFI SCAN

Support

SOS button

Support (above)

SIM card

SMD card

Function interface definition

Not supported

2. Software Specifications and Definitions:

Product parameters

Description

Parameter setting

SMS, Platform

GPRS reporting method

TCP

Working mode

Interval/Intelligent Working Mode

Remote voice monitoring

Not Supported

Third-party query

WEB/APP

Emergency call (SOS)

Supported

Electronic fence function

Not Supported

Remote control of oil and electricity

Not Supported

Illegal demolition alarm

Supported

Vehicle vibration alarm

Not Supported

Electronic switch

Not Supported

Remotely view terminal status

GPS Positioning Status Display (Background Display)

GSM Signal Strength Display (Background Display Not Supported)

Battery Power Display (Background Display)
