4G GPS Locator, Car Electric Vehicle Wireless Charging Positioning Search And Tracking Anti-Theft Strong Magnetic Vehicle

4G GPS Locator, Car Electric Vehicle Wireless Charging Positioning Search And Tracking Anti-Theft Strong Magnetic Vehicle

Q1pro(1100mAh)
Q3pro(1500mAh)
Q5pro(3000mAh)
Q7pro(6000mAh)
Q9pro(1WmAh)
Real-time tracking, historical track, electronic fence, anti-tampering alarm, low power alarm, overspeed alarm, vibration alarm, strong magnetic adsorption, statistical report.

Consult

Features Technical Indicators Overall Dimension

Product name	Rechargeable tracker	Support TDD/FDD mobile network access services, support GPS positioning, Beidou positioning, WIFI positioning

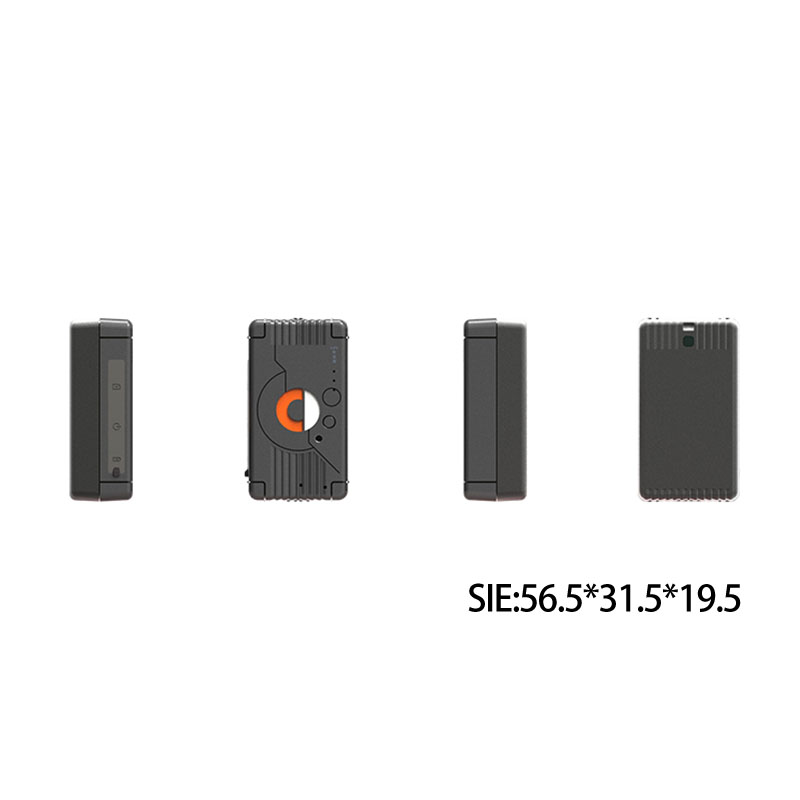

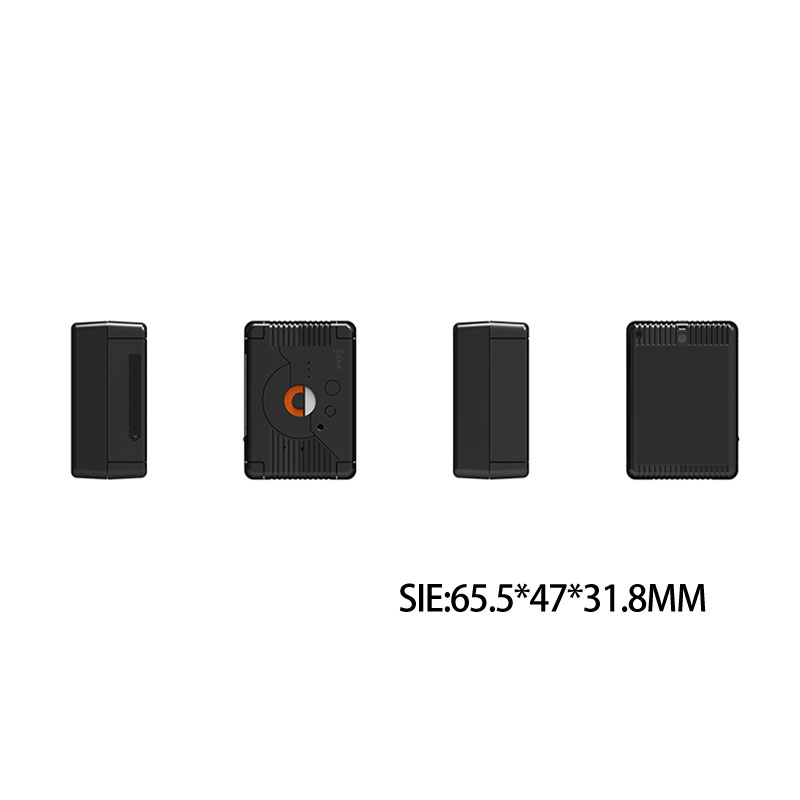

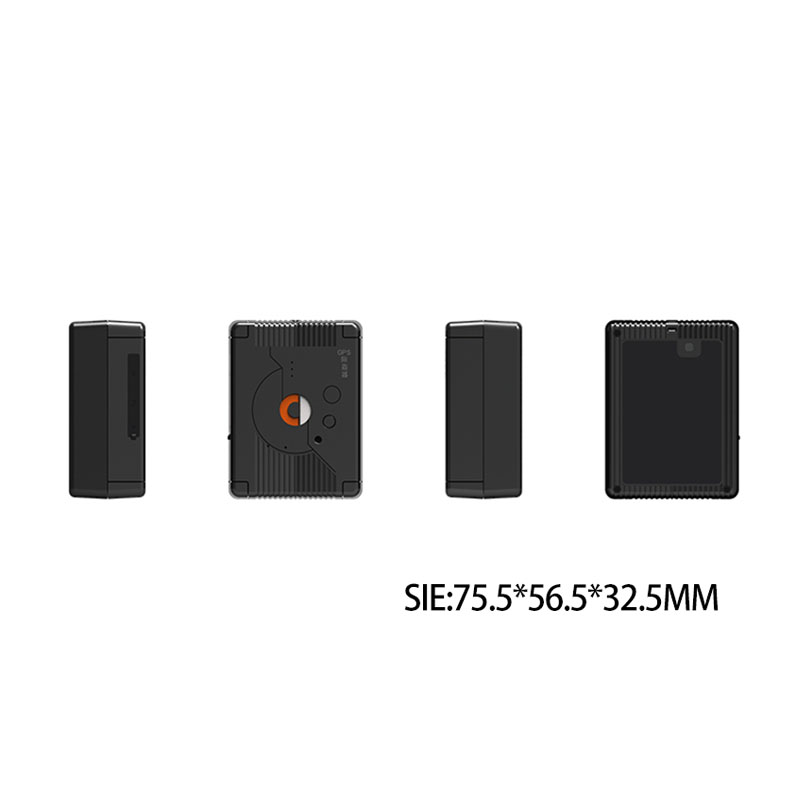

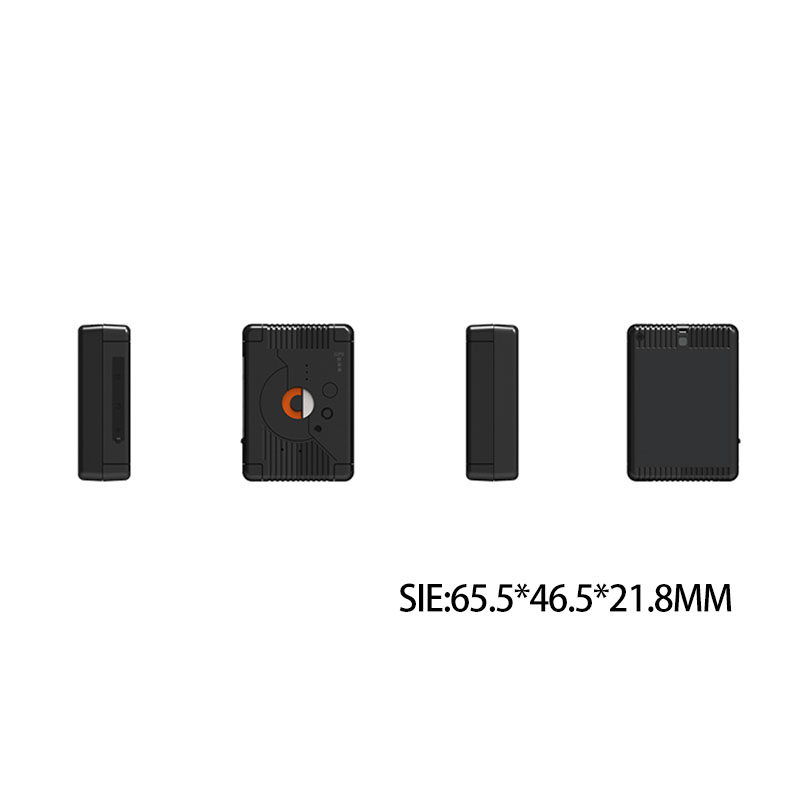

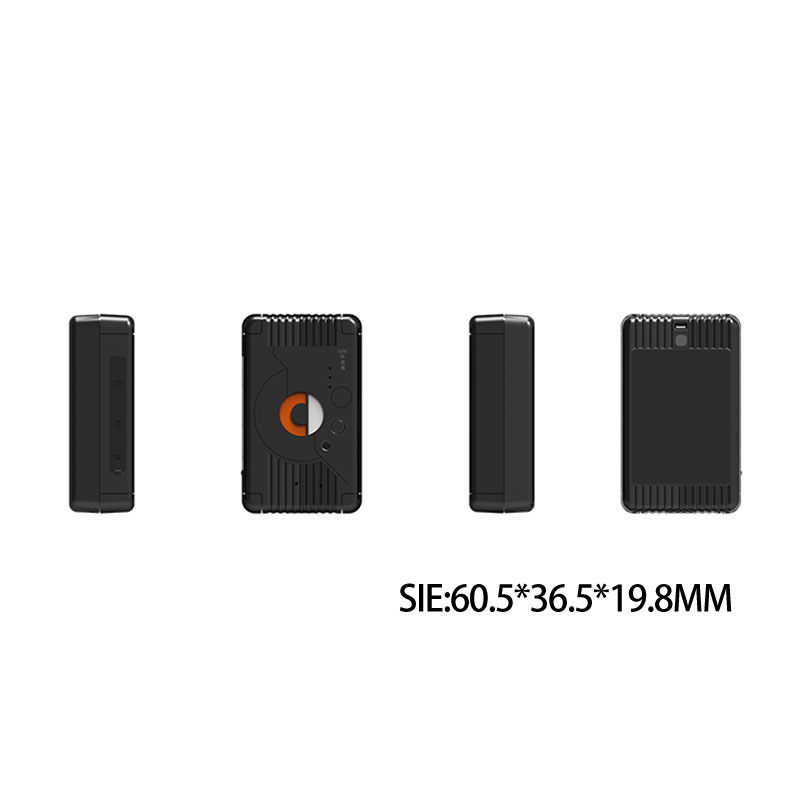

Structural features	Dimensions
Data service	FDD/TDD	Uplink rate 5Mbps, downlink rate 10Mbps
FDD frequency band	B1,3,5,7,8,20	European version, Southeast Asian version, domestic version
TDD frequency band	B38,39,40,41	European version, Southeast Asian version, domestic version
GPS frequency band	Beidou	1561.098MHz
GPS frequency band	GPS	1575.42MHz
GPS Sensitivity	Acquisition	-148dBm(cold)/-163dBm(hot)
	Tracking	-165dBM
	Power consumption	Acq:37mW,Tracking:27mW
WIFI Function	Support	Only used to obtain MAC address positioning, sharing LTE antenna
Power supply characteristics	Operating voltage	3.5-4.2V DC
	Voltage fluctuation	3.3-4.5V DC
	Power switch	Toggle switch
	Operating current	Sleep <0.3mA (clock maintenance) Standby <6.0mA (3 minutes heartbeat) Positioning <60mA (LTE+GPS)
	Charging	600mA
	Built-in battery capacity
Environmental characteristics	Operating temperature	-20℃~+70℃
	Extreme operating temperature	-30℃~+75℃
	Storage temperature	-40℃~+85℃
	Relative humidity	5%～95%
Main hardware features	Gsensor	Built-in
	GPS	Support global GPS, support Beidou, continue to use 6558R
	Light sensor	Support, plug-in type (customer back-end assembly material)
	LED indicator	GPS (blue), GSM (green), Power (red)
	SIM interface	Nano plug-in card
	USB	Type-C, charging + downloading, testing, activating battery
	Analog voice	Built-in dual mic
	Watchdog	Support, chip comes with
	Antenna	GPS: Passive dual-mode ceramic 18*18 LTE: FPC WIFI: FPC, shared LTE
Main software features	Smart wake-up/sleep	Support, timing or Gsensor
	Positioning	Support, timing positioning, intelligent positioning, super power saving positioning
	WIFI positioning	Support
	FOTA	Support
Open-C Solution	Support	Customers can connect to the platform according to SDK
